1D Pyrite Oxidation with from_mf6¶
This is the same Appelo et al. (1998) pyrite-oxidation column as the
previous tutorial, solved with the transport-first
:meth:~mf6rtm.mup3d.base.Mup3d.from_mf6 workflow instead of the classic one.
Rather than building one transport model per component yourself, you build an
ordinary MODFLOW 6 flow model plus a single conservative tracer transport
model, then hand it to from_mf6, which clones that tracer model into one
reactive model per PHREEQC component. The inflow chemistry is switched per
stress period (dilute in period 0, oxidising in period 1) with a single
ChemStress('wel', type='aux').set_spd({0: [2], 1: [3]}) call.
import os
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import flopy
from mf6rtm import utils, mup3d
BASE = "." if os.path.isdir("data") else os.path.join("docs", "tutorials")
DATA = os.path.join(BASE, "data")
1. Discretization and flow¶
Identical column to the classic tutorial: 5.3 cm in 16 cells, two stress
periods (dilute then oxidising flush). The injection well carries a single
tracer auxiliary; from_mf6 replaces it with one aux column per
component at write_simulation().
length_units = "meters"
time_units = "days"
nlay, nrow, ncol = 1, 1, 16
Lx = 0.053
delr = Lx / ncol
delc = 1.0
top = 2.87433e-03
botm = np.linspace(top, 0.0, nlay + 1)[1:]
k11 = 1.0
prsity = 0.376
dispersivity = 0.00537
q = 2.4e-4 # injection rate (m3/d)
nper = 2
nstp = [64, 100]
perlen = [0.9333, 1.45833]
tdis_rc = [(pl, ns, 1.0) for pl, ns in zip(perlen, nstp)]
# WEL carries a single 'tracer' aux (placeholder 1.0) in both periods
wel_spd = {kper: [[(0, 0, 0), q, 1.0]] for kper in range(nper)}
chdspd = [[(0, 0, ncol - 1), 1.0]]
2. Build the flow + tracer transport model¶
A GWF flow model plus one conservative tracer GWT whose SSM sources the
well tracer auxiliary. This is the ordinary MODFLOW 6 model you would
build for conservative transport — from_mf6 takes it from here.
sim_ws = os.path.join(BASE, "_tutorial03_run")
sim = flopy.mf6.MFSimulation(sim_name="pyrite_from_mf6", sim_ws=sim_ws, exe_name="mf6")
flopy.mf6.ModflowTdis(sim, nper=nper, perioddata=tdis_rc, time_units=time_units)
# --- GWF ---
gwf = flopy.mf6.ModflowGwf(sim, modelname="gwf", save_flows=True)
imsgwf = flopy.mf6.ModflowIms(sim, complexity="complex", linear_acceleration="CG",
filename="gwf.ims")
sim.register_ims_package(imsgwf, ["gwf"])
flopy.mf6.ModflowGwfdis(gwf, length_units=length_units, nlay=nlay, nrow=nrow, ncol=ncol,
delr=delr, delc=delc, top=top, botm=botm, filename="gwf.dis")
flopy.mf6.ModflowGwfnpf(gwf, save_specific_discharge=True, save_saturation=True,
icelltype=1, k=k11, filename="gwf.npf")
flopy.mf6.ModflowGwfic(gwf, strt=1.0, filename="gwf.ic")
flopy.mf6.ModflowGwfwel(gwf, stress_period_data=wel_spd, auxiliary=["tracer"],
pname="wel", filename="gwf.wel")
flopy.mf6.ModflowGwfchd(gwf, stress_period_data=chdspd, pname="chd", filename="gwf.chd")
flopy.mf6.ModflowGwfoc(gwf, head_filerecord="gwf.hds", budget_filerecord="gwf.cbb",
saverecord=[("HEAD", "ALL"), ("BUDGET", "ALL")])
# --- single conservative tracer GWT (the from_mf6 template) ---
gwt = flopy.mf6.ModflowGwt(sim, modelname="tracer")
imsgwt = flopy.mf6.ModflowIms(sim, linear_acceleration="BICGSTAB", filename="tracer.ims")
sim.register_ims_package(imsgwt, ["tracer"])
flopy.mf6.ModflowGwtdis(gwt, length_units=length_units, nlay=nlay, nrow=nrow, ncol=ncol,
delr=delr, delc=delc, top=top, botm=botm, filename="tracer.dis")
flopy.mf6.ModflowGwtic(gwt, strt=0.0, filename="tracer.ic")
flopy.mf6.ModflowGwtssm(gwt, sources=[["wel", "aux", "tracer"]], filename="tracer.ssm")
flopy.mf6.ModflowGwtadv(gwt, scheme="tvd")
flopy.mf6.ModflowGwtdsp(gwt, xt3d_off=True, alh=dispersivity, ath1=dispersivity * 0.1,
filename="tracer.dsp")
flopy.mf6.ModflowGwtmst(gwt, porosity=prsity, filename="tracer.mst")
flopy.mf6.ModflowGwtoc(gwt, concentration_filerecord="tracer.ucn",
saverecord=[("CONCENTRATION", "ALL")])
flopy.mf6.ModflowGwfgwt(sim, exgtype="GWF6-GWT6", exgmnamea="gwf", exgmnameb="tracer",
filename="tracer.gwfgwt")
package_name = tracer.gwfgwt
filename = tracer.gwfgwt
package_type = gwfgwt
model_or_simulation_package = simulation
simulation_name = pyrite_from_mf6
3. Geochemistry — the pyrite reaction network¶
The chemistry is identical to the classic tutorial (the mup3d classes are
workflow-agnostic): initial pore water (Solutions), four-zone cation
ExchangePhases, kinetic pyrite + organic matter (KineticPhases),
calcite (EquilibriumPhases) and surface complexation (Surfaces).
solutionsdf = pd.read_csv(os.path.join(DATA, "tut02_solutions.csv"),
comment="#", index_col=0)
solution = mup3d.Solutions(utils.solution_df_to_dict(solutionsdf))
solution.set_ic(np.ones((nlay, nrow, ncol), dtype=float))
# cation exchanger with four spatial zones
excdf = pd.read_csv(os.path.join(DATA, "tut02_exchange.csv"), comment="#", index_col=0)
excdf.columns = [0, 1, 2, 3]
exchanger_dict = excdf.to_dict()
for _z, subdict in exchanger_dict.items():
for key in subdict:
subdict[key] = {"m0": subdict[key]}
exchanger = mup3d.ExchangePhases(exchanger_dict)
exchanger_ic = np.ones((nlay, nrow, ncol), dtype=float)
exchanger_ic[0, 0, :4] = 1
exchanger_ic[0, 0, 4:8] = 2
exchanger_ic[0, 0, 8:12] = 3
exchanger_ic[0, 0, 12:] = 4
exchanger.set_ic(exchanger_ic)
exchanger.set_equilibrate_solutions([1, 1, 1, 1])
# kinetic pyrite + organic matter
kin_df = pd.read_csv(os.path.join(DATA, "tut02_kinetic_phases.csv"))
kin_phases = utils.parse_kinetics_dataframe(kin_df)
kin_phases[1]["Orgc_sed"]["formula"] = "Orgc_sed -1.0 C 1.0"
kinetics = mup3d.KineticPhases(kin_phases)
kinetics.set_ic(1)
# equilibrium phases + surfaces
eqp_df = pd.read_csv(os.path.join(DATA, "tut02_equilibrium_phases.csv"))
equilibriums = mup3d.EquilibriumPhases(utils.parse_equilibriums_dataframe(eqp_df))
equilibriums.set_ic(1)
surfaces = mup3d.Surfaces(utils.surfaces_csv_to_dict(
os.path.join(DATA, "tut02_surfaces.csv")))
surfaces.set_ic(1)
4. Couple with from_mf6 and set the per-period inflow¶
from_mf6 reads the grid from the GWF model and stores the tracer GWT as
the template to clone. The inflow well switches solution by stress period
via a dict: solution 2 (dilute) in period 0, solution 3 (oxidising) in period 1.
model = mup3d.Mup3d.from_mf6(sim, solution, name="pyrite_from_mf6", gwt_name="tracer")
model.set_wd(sim_ws)
model.set_database(os.path.join(DATA, "tut02_datab.dat"))
model.set_initial_temp([7.0, 7.0, 7.0])
model.set_postfix(os.path.join(DATA, "tut02_postfix.phqr"))
model.set_exchange_phases(exchanger)
model.set_phases(kinetics)
model.set_phases(equilibriums)
model.set_phases(surfaces)
model.initialize()
wellchem = mup3d.ChemStress("wel", type="aux")
wellchem.set_spd({0: [2], 1: [3]}) # period 0 -> solution 2, period 1 -> solution 3
model.set_chem_stress(wellchem)
Using temperatue of 7.0 from SOLUTION 1 for all cells
MF6RTM will run with the following configuration:
Reactive: True
Reaction timing: all
External files flag: False
Emulator flag: False
Min concentration: None (no clipping)
Reactions calculated at all time steps
Phreeqc initialized
Initializing ChemStress
ChemStress wel initialized
5. Write and run¶
model.write_simulation()
# Stage the platform's MODFLOW 6 binaries into the run directory (pixi fetches
# them into ``benchmark/bin``) so the solver finds libmf6 locally.
utils.prep_bins(model.wd, src_path=os.path.join(BASE, "..", "..", "benchmark", "bin"))
model.run()
writing simulation...
writing simulation name file...
writing simulation tdis package...
writing solution package ims_-1...
writing solution package ims_1...
writing solution package ims_2...
writing solution package ims_3...
writing solution package ims_4...
writing solution package ims_5...
writing solution package ims_6...
writing solution package ims_7...
writing solution package ims_8...
writing solution package ims_9...
writing solution package ims_10...
writing package H.gwfgwt...
writing package O.gwfgwt...
writing package Charge.gwfgwt...
writing package C.gwfgwt...
writing package Ca.gwfgwt...
writing package Cl.gwfgwt...
writing package Fe.gwfgwt...
writing package Mg.gwfgwt...
writing package Orgc_sed.gwfgwt...
writing package S.gwfgwt...
writing model gwf...
writing model name file...
writing package dis...
writing package npf...
writing package ic...
writing package wel...
INFORMATION: maxbound in ('gwf6', 'wel', 'dimensions') changed to 1 based on size of stress_period_data
writing package chd...
INFORMATION: maxbound in ('gwf6', 'chd', 'dimensions') changed to 1 based on size of stress_period_data
writing package oc...
writing model H...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model O...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model Charge...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model C...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model Ca...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model Cl...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model Fe...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model Mg...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model Orgc_sed...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
writing model S...
writing model name file...
writing package dis...
writing package adv...
writing package dsp...
writing package ic...
writing package mst...
writing package ssm...
writing package oc...
MF6RTM will run with the following configuration:
Reactive: True
Reaction timing: all
External files flag: False
Emulator flag: False
Min concentration: None (no clipping)
Reactions calculated at all time steps
Simulation saved in /Users/portega/dev/code/mf6rtm/mf6rtm-main/docs/tutorials/_tutorial03_run
Running mf6rtm
Using libmf6 found in model directory: libmf6.dylib
Processing initial chemistry configuration
Starting Solution at 2026-07-20 15:57:09
Transport | Stress period: 1 | Time step: 1 | Completed in : 0 min 1.30e-06 sec
Reactions | Stress period: 1 | Time step: 1 | Completed in : 0 min 1.13e-04 sec
Transport | Stress period: 1 | Time step: 2 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 1 | Time step: 2 | Completed in : 0 min 9.13e-04 sec
Transport | Stress period: 1 | Time step: 3 | Completed in : 0 min 1.98e-06 sec
Reactions | Stress period: 1 | Time step: 3 | Completed in : 0 min 7.52e-04 sec
Transport | Stress period: 1 | Time step: 4 | Completed in : 0 min 1.70e-06 sec
Reactions | Stress period: 1 | Time step: 4 | Completed in : 0 min 5.63e-04 sec
Transport | Stress period: 1 | Time step: 5 | Completed in : 0 min 1.60e-06 sec
Reactions | Stress period: 1 | Time step: 5 | Completed in : 0 min 5.66e-04 sec
Transport | Stress period: 1 | Time step: 6 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 1 | Time step: 6 | Completed in : 0 min 5.60e-04 sec
Transport | Stress period: 1 | Time step: 7 | Completed in : 0 min 1.47e-06 sec
Reactions | Stress period: 1 | Time step: 7 | Completed in : 0 min 5.43e-04 sec
Transport | Stress period: 1 | Time step: 8 | Completed in : 0 min 1.45e-06 sec
Reactions | Stress period: 1 | Time step: 8 | Completed in : 0 min 5.34e-04 sec
Transport | Stress period: 1 | Time step: 9 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 1 | Time step: 9 | Completed in : 0 min 5.27e-04 sec
Transport | Stress period: 1 | Time step: 10 | Completed in : 0 min 1.42e-06 sec
Reactions | Stress period: 1 | Time step: 10 | Completed in : 0 min 4.88e-04 sec
Transport | Stress period: 1 | Time step: 11 | Completed in : 0 min 1.50e-06 sec
Reactions | Stress period: 1 | Time step: 11 | Completed in : 0 min 4.91e-04 sec
Transport | Stress period: 1 | Time step: 12 | Completed in : 0 min 1.53e-06 sec
Reactions | Stress period: 1 | Time step: 12 | Completed in : 0 min 4.83e-04 sec
Transport | Stress period: 1 | Time step: 13 | Completed in : 0 min 1.68e-06 sec
Reactions | Stress period: 1 | Time step: 13 | Completed in : 0 min 4.53e-04 sec
Transport | Stress period: 1 | Time step: 14 | Completed in : 0 min 1.97e-06 sec
Reactions | Stress period: 1 | Time step: 14 | Completed in : 0 min 4.34e-04 sec
Transport | Stress period: 1 | Time step: 15 | Completed in : 0 min 2.80e-06 sec
Reactions | Stress period: 1 | Time step: 15 | Completed in : 0 min 4.07e-04 sec
Transport | Stress period: 1 | Time step: 16 | Completed in : 0 min 1.57e-06 sec
Reactions | Stress period: 1 | Time step: 16 | Completed in : 0 min 3.98e-04 sec
Transport | Stress period: 1 | Time step: 17 | Completed in : 0 min 1.88e-06 sec
Reactions | Stress period: 1 | Time step: 17 | Completed in : 0 min 3.86e-04 sec
Transport | Stress period: 1 | Time step: 18 | Completed in : 0 min 1.57e-06 sec
Reactions | Stress period: 1 | Time step: 18 | Completed in : 0 min 3.81e-04 sec
Transport | Stress period: 1 | Time step: 19 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 1 | Time step: 19 | Completed in : 0 min 3.90e-04 sec
Transport | Stress period: 1 | Time step: 20 | Completed in : 0 min 1.43e-06 sec
Reactions | Stress period: 1 | Time step: 20 | Completed in : 0 min 3.79e-04 sec
Transport | Stress period: 1 | Time step: 21 | Completed in : 0 min 1.60e-06 sec
Reactions | Stress period: 1 | Time step: 21 | Completed in : 0 min 3.77e-04 sec
Transport | Stress period: 1 | Time step: 22 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 1 | Time step: 22 | Completed in : 0 min 3.78e-04 sec
Transport | Stress period: 1 | Time step: 23 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 1 | Time step: 23 | Completed in : 0 min 3.72e-04 sec
Transport | Stress period: 1 | Time step: 24 | Completed in : 0 min 1.52e-06 sec
Reactions | Stress period: 1 | Time step: 24 | Completed in : 0 min 3.59e-04 sec
Transport | Stress period: 1 | Time step: 25 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 1 | Time step: 25 | Completed in : 0 min 3.58e-04 sec
Transport | Stress period: 1 | Time step: 26 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 1 | Time step: 26 | Completed in : 0 min 3.79e-04 sec
Transport | Stress period: 1 | Time step: 27 | Completed in : 0 min 1.60e-06 sec
Reactions | Stress period: 1 | Time step: 27 | Completed in : 0 min 3.58e-04 sec
Transport | Stress period: 1 | Time step: 28 | Completed in : 0 min 1.60e-06 sec
Reactions | Stress period: 1 | Time step: 28 | Completed in : 0 min 3.38e-04 sec
Transport | Stress period: 1 | Time step: 29 | Completed in : 0 min 1.13e-06 sec
Reactions | Stress period: 1 | Time step: 29 | Completed in : 0 min 3.44e-04 sec
Transport | Stress period: 1 | Time step: 30 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 1 | Time step: 30 | Completed in : 0 min 3.42e-04 sec
Transport | Stress period: 1 | Time step: 31 | Completed in : 0 min 1.05e-06 sec
Reactions | Stress period: 1 | Time step: 31 | Completed in : 0 min 3.36e-04 sec
Transport | Stress period: 1 | Time step: 32 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 1 | Time step: 32 | Completed in : 0 min 3.40e-04 sec
Transport | Stress period: 1 | Time step: 33 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 1 | Time step: 33 | Completed in : 0 min 3.40e-04 sec
Transport | Stress period: 1 | Time step: 34 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 1 | Time step: 34 | Completed in : 0 min 3.39e-04 sec
Transport | Stress period: 1 | Time step: 35 | Completed in : 0 min 1.05e-06 sec
Reactions | Stress period: 1 | Time step: 35 | Completed in : 0 min 3.38e-04 sec
Transport | Stress period: 1 | Time step: 36 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 1 | Time step: 36 | Completed in : 0 min 3.40e-04 sec
Transport | Stress period: 1 | Time step: 37 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 1 | Time step: 37 | Completed in : 0 min 3.41e-04 sec
Transport | Stress period: 1 | Time step: 38 | Completed in : 0 min 1.17e-06 sec
Reactions | Stress period: 1 | Time step: 38 | Completed in : 0 min 3.40e-04 sec
Transport | Stress period: 1 | Time step: 39 | Completed in : 0 min 1.17e-06 sec
Reactions | Stress period: 1 | Time step: 39 | Completed in : 0 min 3.41e-04 sec
Transport | Stress period: 1 | Time step: 40 | Completed in : 0 min 1.17e-06 sec
Reactions | Stress period: 1 | Time step: 40 | Completed in : 0 min 3.34e-04 sec
Transport | Stress period: 1 | Time step: 41 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 1 | Time step: 41 | Completed in : 0 min 3.36e-04 sec
Transport | Stress period: 1 | Time step: 42 | Completed in : 0 min 1.08e-06 sec
Reactions | Stress period: 1 | Time step: 42 | Completed in : 0 min 3.38e-04 sec
Transport | Stress period: 1 | Time step: 43 | Completed in : 0 min 1.10e-06 sec
Reactions | Stress period: 1 | Time step: 43 | Completed in : 0 min 3.41e-04 sec
Transport | Stress period: 1 | Time step: 44 | Completed in : 0 min 1.08e-06 sec
Reactions | Stress period: 1 | Time step: 44 | Completed in : 0 min 3.24e-04 sec
Transport | Stress period: 1 | Time step: 45 | Completed in : 0 min 1.13e-06 sec
Reactions | Stress period: 1 | Time step: 45 | Completed in : 0 min 3.30e-04 sec
Transport | Stress period: 1 | Time step: 46 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 1 | Time step: 46 | Completed in : 0 min 3.30e-04 sec
Transport | Stress period: 1 | Time step: 47 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 1 | Time step: 47 | Completed in : 0 min 3.26e-04 sec
Transport | Stress period: 1 | Time step: 48 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 1 | Time step: 48 | Completed in : 0 min 3.24e-04 sec
Transport | Stress period: 1 | Time step: 49 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 1 | Time step: 49 | Completed in : 0 min 3.19e-04 sec
Transport | Stress period: 1 | Time step: 50 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 1 | Time step: 50 | Completed in : 0 min 3.13e-04 sec
Transport | Stress period: 1 | Time step: 51 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 1 | Time step: 51 | Completed in : 0 min 3.15e-04 sec
Transport | Stress period: 1 | Time step: 52 | Completed in : 0 min 1.27e-06 sec
Reactions | Stress period: 1 | Time step: 52 | Completed in : 0 min 3.14e-04 sec
Transport | Stress period: 1 | Time step: 53 | Completed in : 0 min 1.13e-06 sec
Reactions | Stress period: 1 | Time step: 53 | Completed in : 0 min 3.10e-04 sec
Transport | Stress period: 1 | Time step: 54 | Completed in : 0 min 1.23e-06 sec
Reactions | Stress period: 1 | Time step: 54 | Completed in : 0 min 3.03e-04 sec
Transport | Stress period: 1 | Time step: 55 | Completed in : 0 min 1.28e-06 sec
Reactions | Stress period: 1 | Time step: 55 | Completed in : 0 min 3.06e-04 sec
Transport | Stress period: 1 | Time step: 56 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 1 | Time step: 56 | Completed in : 0 min 3.08e-04 sec
Transport | Stress period: 1 | Time step: 57 | Completed in : 0 min 1.25e-06 sec
Reactions | Stress period: 1 | Time step: 57 | Completed in : 0 min 3.00e-04 sec
Transport | Stress period: 1 | Time step: 58 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 1 | Time step: 58 | Completed in : 0 min 2.99e-04 sec
Transport | Stress period: 1 | Time step: 59 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 1 | Time step: 59 | Completed in : 0 min 2.98e-04 sec
Transport | Stress period: 1 | Time step: 60 | Completed in : 0 min 1.13e-06 sec
Reactions | Stress period: 1 | Time step: 60 | Completed in : 0 min 3.02e-04 sec
Transport | Stress period: 1 | Time step: 61 | Completed in : 0 min 1.33e-06 sec
Reactions | Stress period: 1 | Time step: 61 | Completed in : 0 min 3.02e-04 sec
Transport | Stress period: 1 | Time step: 62 | Completed in : 0 min 1.17e-06 sec
Reactions | Stress period: 1 | Time step: 62 | Completed in : 0 min 3.01e-04 sec
Transport | Stress period: 1 | Time step: 63 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 1 | Time step: 63 | Completed in : 0 min 2.89e-04 sec
Transport | Stress period: 1 | Time step: 64 | Completed in : 0 min 1.08e-06 sec
Reactions | Stress period: 1 | Time step: 64 | Completed in : 0 min 2.87e-04 sec
Transport | Stress period: 2 | Time step: 1 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 2 | Time step: 1 | Completed in : 0 min 2.95e-04 sec
Transport | Stress period: 2 | Time step: 2 | Completed in : 0 min 1.37e-06 sec
Reactions | Stress period: 2 | Time step: 2 | Completed in : 0 min 2.97e-04 sec
Transport | Stress period: 2 | Time step: 3 | Completed in : 0 min 1.67e-06 sec
Reactions | Stress period: 2 | Time step: 3 | Completed in : 0 min 3.01e-04 sec
Transport | Stress period: 2 | Time step: 4 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 2 | Time step: 4 | Completed in : 0 min 3.11e-04 sec
Transport | Stress period: 2 | Time step: 5 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 5 | Completed in : 0 min 3.12e-04 sec
Transport | Stress period: 2 | Time step: 6 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 6 | Completed in : 0 min 3.13e-04 sec
Transport | Stress period: 2 | Time step: 7 | Completed in : 0 min 1.42e-06 sec
Reactions | Stress period: 2 | Time step: 7 | Completed in : 0 min 3.02e-04 sec
Transport | Stress period: 2 | Time step: 8 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 8 | Completed in : 0 min 3.15e-04 sec
Transport | Stress period: 2 | Time step: 9 | Completed in : 0 min 1.42e-06 sec
Reactions | Stress period: 2 | Time step: 9 | Completed in : 0 min 3.31e-04 sec
Transport | Stress period: 2 | Time step: 10 | Completed in : 0 min 1.52e-06 sec
Reactions | Stress period: 2 | Time step: 10 | Completed in : 0 min 3.28e-04 sec
Transport | Stress period: 2 | Time step: 11 | Completed in : 0 min 1.40e-06 sec
Reactions | Stress period: 2 | Time step: 11 | Completed in : 0 min 3.33e-04 sec
Transport | Stress period: 2 | Time step: 12 | Completed in : 0 min 1.63e-06 sec
Reactions | Stress period: 2 | Time step: 12 | Completed in : 0 min 3.43e-04 sec
Transport | Stress period: 2 | Time step: 13 | Completed in : 0 min 1.52e-06 sec
Reactions | Stress period: 2 | Time step: 13 | Completed in : 0 min 3.35e-04 sec
Transport | Stress period: 2 | Time step: 14 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 2 | Time step: 14 | Completed in : 0 min 3.43e-04 sec
Transport | Stress period: 2 | Time step: 15 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 2 | Time step: 15 | Completed in : 0 min 3.49e-04 sec
Transport | Stress period: 2 | Time step: 16 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 16 | Completed in : 0 min 3.43e-04 sec
Transport | Stress period: 2 | Time step: 17 | Completed in : 0 min 1.53e-06 sec
Reactions | Stress period: 2 | Time step: 17 | Completed in : 0 min 3.54e-04 sec
Transport | Stress period: 2 | Time step: 18 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 18 | Completed in : 0 min 3.56e-04 sec
Transport | Stress period: 2 | Time step: 19 | Completed in : 0 min 1.43e-06 sec
Reactions | Stress period: 2 | Time step: 19 | Completed in : 0 min 3.62e-04 sec
Transport | Stress period: 2 | Time step: 20 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 2 | Time step: 20 | Completed in : 0 min 3.68e-04 sec
Transport | Stress period: 2 | Time step: 21 | Completed in : 0 min 1.58e-06 sec
Reactions | Stress period: 2 | Time step: 21 | Completed in : 0 min 3.75e-04 sec
Transport | Stress period: 2 | Time step: 22 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 2 | Time step: 22 | Completed in : 0 min 3.68e-04 sec
Transport | Stress period: 2 | Time step: 23 | Completed in : 0 min 1.60e-06 sec
Reactions | Stress period: 2 | Time step: 23 | Completed in : 0 min 3.82e-04 sec
Transport | Stress period: 2 | Time step: 24 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 24 | Completed in : 0 min 3.78e-04 sec
Transport | Stress period: 2 | Time step: 25 | Completed in : 0 min 1.57e-06 sec
Reactions | Stress period: 2 | Time step: 25 | Completed in : 0 min 3.80e-04 sec
Transport | Stress period: 2 | Time step: 26 | Completed in : 0 min 1.38e-06 sec
Reactions | Stress period: 2 | Time step: 26 | Completed in : 0 min 3.82e-04 sec
Transport | Stress period: 2 | Time step: 27 | Completed in : 0 min 1.53e-06 sec
Reactions | Stress period: 2 | Time step: 27 | Completed in : 0 min 3.95e-04 sec
Transport | Stress period: 2 | Time step: 28 | Completed in : 0 min 1.53e-06 sec
Reactions | Stress period: 2 | Time step: 28 | Completed in : 0 min 4.04e-04 sec
Transport | Stress period: 2 | Time step: 29 | Completed in : 0 min 1.53e-06 sec
Reactions | Stress period: 2 | Time step: 29 | Completed in : 0 min 3.77e-04 sec
Transport | Stress period: 2 | Time step: 30 | Completed in : 0 min 1.58e-06 sec
Reactions | Stress period: 2 | Time step: 30 | Completed in : 0 min 3.99e-04 sec
Transport | Stress period: 2 | Time step: 31 | Completed in : 0 min 1.45e-06 sec
WARNING: Negative moles in solution 0 for C, -6.066502e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.395885e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -2.248613e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -3.173225e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -4.178225e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -4.755068e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -5.094314e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -5.460239e-04. Recovering...
Reactions | Stress period: 2 | Time step: 31 | Completed in : 0 min 4.04e-04 sec
Transport | Stress period: 2 | Time step: 32 | Completed in : 0 min 1.43e-06 sec
Reactions | Stress period: 2 | Time step: 32 | Completed in : 0 min 3.93e-04 sec
Transport | Stress period: 2 | Time step: 33 | Completed in : 0 min 1.42e-06 sec
Reactions | Stress period: 2 | Time step: 33 | Completed in : 0 min 3.93e-04 sec
Transport | Stress period: 2 | Time step: 34 | Completed in : 0 min 1.55e-06 sec
Reactions | Stress period: 2 | Time step: 34 | Completed in : 0 min 4.00e-04 sec
Transport | Stress period: 2 | Time step: 35 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 2 | Time step: 35 | Completed in : 0 min 4.09e-04 sec
Transport | Stress period: 2 | Time step: 36 | Completed in : 0 min 1.10e-06 sec
Reactions | Stress period: 2 | Time step: 36 | Completed in : 0 min 4.24e-04 sec
Transport | Stress period: 2 | Time step: 37 | Completed in : 0 min 1.15e-06 sec
Reactions | Stress period: 2 | Time step: 37 | Completed in : 0 min 4.35e-04 sec
Transport | Stress period: 2 | Time step: 38 | Completed in : 0 min 1.20e-06 sec
WARNING: Negative moles in solution 0 for C, -5.853989e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -6.275973e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -6.727258e-04. Recovering...
WARNING: Negative moles in solution 1 for C, -2.959380e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -7.208024e-04. Recovering...
WARNING: Negative moles in solution 1 for C, -9.737805e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -7.717981e-04. Recovering...
WARNING: Negative moles in solution 1 for C, -1.695636e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -8.256428e-04. Recovering...
WARNING: Negative moles in solution 1 for C, -2.466088e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -8.822197e-04. Recovering...
WARNING: Negative moles in solution 1 for C, -3.289608e-04. Recovering...
Reactions | Stress period: 2 | Time step: 38 | Completed in : 0 min 4.32e-04 sec
Transport | Stress period: 2 | Time step: 39 | Completed in : 0 min 1.05e-06 sec
Reactions | Stress period: 2 | Time step: 39 | Completed in : 0 min 4.03e-04 sec
Transport | Stress period: 2 | Time step: 40 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 40 | Completed in : 0 min 4.04e-04 sec
Transport | Stress period: 2 | Time step: 41 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 2 | Time step: 41 | Completed in : 0 min 4.17e-04 sec
Transport | Stress period: 2 | Time step: 42 | Completed in : 0 min 1.23e-06 sec
Reactions | Stress period: 2 | Time step: 42 | Completed in : 0 min 4.42e-04 sec
Transport | Stress period: 2 | Time step: 43 | Completed in : 0 min 1.32e-06 sec
Reactions | Stress period: 2 | Time step: 43 | Completed in : 0 min 4.30e-04 sec
Transport | Stress period: 2 | Time step: 44 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 44 | Completed in : 0 min 4.49e-04 sec
Transport | Stress period: 2 | Time step: 45 | Completed in : 0 min 1.20e-06 sec
WARNING: Negative moles in solution 0 for C, -9.413629e-04. Recovering...
WARNING: Negative moles in solution 1 for C, -3.981689e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.002855e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -4.231929e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.066335e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -4.496478e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.131843e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -4.774188e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.198682e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -5.067931e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.251013e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -5.374682e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.296184e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -5.693735e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -7.767535e-06. Recovering...
WARNING: Negative moles in solution 0 for C, -1.341181e-03. Recovering...
Reactions | Stress period: 2 | Time step: 45 | Completed in : 0 min 4.56e-04 sec
Transport | Stress period: 2 | Time step: 46 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 46 | Completed in : 0 min 4.40e-04 sec
Transport | Stress period: 2 | Time step: 47 | Completed in : 0 min 1.17e-06 sec
Reactions | Stress period: 2 | Time step: 47 | Completed in : 0 min 4.63e-04 sec
Transport | Stress period: 2 | Time step: 48 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 48 | Completed in : 0 min 4.73e-04 sec
Transport | Stress period: 2 | Time step: 49 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 2 | Time step: 49 | Completed in : 0 min 4.90e-04 sec
Transport | Stress period: 2 | Time step: 50 | Completed in : 0 min 1.15e-06 sec
Reactions | Stress period: 2 | Time step: 50 | Completed in : 0 min 4.67e-04 sec
Transport | Stress period: 2 | Time step: 51 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 51 | Completed in : 0 min 4.86e-04 sec
Transport | Stress period: 2 | Time step: 52 | Completed in : 0 min 1.07e-06 sec
WARNING: Negative moles in solution 1 for C, -6.024443e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -6.243593e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.385677e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -6.365850e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -1.190085e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.429382e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -6.716911e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -1.775235e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.472024e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -7.076298e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -2.379699e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.513359e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -7.442710e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -3.002754e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.553170e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -7.814825e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -3.383371e-04. Recovering...
Reactions | Stress period: 2 | Time step: 52 | Completed in : 0 min 4.90e-04 sec
Transport | Stress period: 2 | Time step: 53 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 53 | Completed in : 0 min 4.93e-04 sec
Transport | Stress period: 2 | Time step: 54 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 2 | Time step: 54 | Completed in : 0 min 4.95e-04 sec
Transport | Stress period: 2 | Time step: 55 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 55 | Completed in : 0 min 5.10e-04 sec
Transport | Stress period: 2 | Time step: 56 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 56 | Completed in : 0 min 5.13e-04 sec
Transport | Stress period: 2 | Time step: 57 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 57 | Completed in : 0 min 5.16e-04 sec
Transport | Stress period: 2 | Time step: 58 | Completed in : 0 min 1.22e-06 sec
WARNING: Negative moles in solution 0 for C, -1.591256e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -8.191042e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -3.532809e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.627459e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -8.569765e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -3.681708e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.661674e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -8.949940e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -3.829498e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.693797e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -9.330035e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -3.975217e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.723755e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -9.708490e-04. Recovering...
WARNING: Negative moles in solution 2 for C, -4.117902e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -7.917385e-07. Recovering...
WARNING: Negative moles in solution 0 for C, -1.751501e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.008375e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.256649e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -4.349669e-05. Recovering...
Reactions | Stress period: 2 | Time step: 58 | Completed in : 0 min 5.53e-04 sec
Transport | Stress period: 2 | Time step: 59 | Completed in : 0 min 1.08e-06 sec
Reactions | Stress period: 2 | Time step: 59 | Completed in : 0 min 5.43e-04 sec
Transport | Stress period: 2 | Time step: 60 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 60 | Completed in : 0 min 5.48e-04 sec
Transport | Stress period: 2 | Time step: 61 | Completed in : 0 min 1.15e-06 sec
Reactions | Stress period: 2 | Time step: 61 | Completed in : 0 min 5.36e-04 sec
Transport | Stress period: 2 | Time step: 62 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 62 | Completed in : 0 min 5.33e-04 sec
Transport | Stress period: 2 | Time step: 63 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 63 | Completed in : 0 min 5.39e-04 sec
Transport | Stress period: 2 | Time step: 64 | Completed in : 0 min 1.23e-06 sec
WARNING: Negative moles in solution 0 for C, -1.777012e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.045425e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.390627e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -8.651190e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.800288e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.081847e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.519149e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.296530e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.821348e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.117496e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.641610e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.726836e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.840229e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.152230e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.757788e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.153082e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.856981e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.185914e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.867375e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.571838e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.871666e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.218442e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -4.970439e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.838065e-04. Recovering...
Reactions | Stress period: 2 | Time step: 64 | Completed in : 0 min 5.38e-04 sec
Transport | Stress period: 2 | Time step: 65 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 65 | Completed in : 0 min 5.64e-04 sec
Transport | Stress period: 2 | Time step: 66 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 66 | Completed in : 0 min 5.50e-04 sec
Transport | Stress period: 2 | Time step: 67 | Completed in : 0 min 1.20e-06 sec
Reactions | Stress period: 2 | Time step: 67 | Completed in : 0 min 5.59e-04 sec
Transport | Stress period: 2 | Time step: 68 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 2 | Time step: 68 | Completed in : 0 min 5.65e-04 sec
Transport | Stress period: 2 | Time step: 69 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 69 | Completed in : 0 min 5.61e-04 sec
Transport | Stress period: 2 | Time step: 70 | Completed in : 0 min 1.25e-06 sec
WARNING: Negative moles in solution 0 for C, -1.884353e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.249678e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.066971e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.900178e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.895127e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.279544e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.157477e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.953044e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.904078e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.307972e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.242745e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.995702e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.911295e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.332549e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.323620e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -3.027038e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.916871e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.345627e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.400727e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -3.046027e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.781302e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.920895e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.357542e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.474631e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -3.051752e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -6.277435e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.923455e-03. Recovering...
Reactions | Stress period: 2 | Time step: 70 | Completed in : 0 min 5.75e-04 sec
Transport | Stress period: 2 | Time step: 71 | Completed in : 0 min 1.18e-06 sec
Reactions | Stress period: 2 | Time step: 71 | Completed in : 0 min 5.96e-04 sec
Transport | Stress period: 2 | Time step: 72 | Completed in : 0 min 1.22e-06 sec
Reactions | Stress period: 2 | Time step: 72 | Completed in : 0 min 5.88e-04 sec
Transport | Stress period: 2 | Time step: 73 | Completed in : 0 min 1.37e-06 sec
Reactions | Stress period: 2 | Time step: 73 | Completed in : 0 min 5.80e-04 sec
Transport | Stress period: 2 | Time step: 74 | Completed in : 0 min 1.07e-06 sec
Reactions | Stress period: 2 | Time step: 74 | Completed in : 0 min 5.77e-04 sec
Transport | Stress period: 2 | Time step: 75 | Completed in : 0 min 8.17e-07 sec
Reactions | Stress period: 2 | Time step: 75 | Completed in : 0 min 5.97e-04 sec
Transport | Stress period: 2 | Time step: 76 | Completed in : 0 min 8.33e-07 sec
WARNING: Negative moles in solution 1 for C, -1.368279e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.545419e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -3.043289e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -9.714935e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.924645e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.377856e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.615227e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -3.020644e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.306676e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.924548e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.386268e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.684006e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.983388e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.629756e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.923252e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.393531e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.752340e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.931602e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.936797e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.920839e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.399666e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.820730e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.865668e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.223507e-04. Recovering...
Reactions | Stress period: 2 | Time step: 76 | Completed in : 0 min 6.08e-04 sec
Transport | Stress period: 2 | Time step: 77 | Completed in : 0 min 7.33e-07 sec
Reactions | Stress period: 2 | Time step: 77 | Completed in : 0 min 6.09e-04 sec
Transport | Stress period: 2 | Time step: 78 | Completed in : 0 min 7.33e-07 sec
Reactions | Stress period: 2 | Time step: 78 | Completed in : 0 min 6.34e-04 sec
Transport | Stress period: 2 | Time step: 79 | Completed in : 0 min 8.33e-07 sec
Reactions | Stress period: 2 | Time step: 79 | Completed in : 0 min 6.21e-04 sec
Transport | Stress period: 2 | Time step: 80 | Completed in : 0 min 8.17e-07 sec
Reactions | Stress period: 2 | Time step: 80 | Completed in : 0 min 6.31e-04 sec
Transport | Stress period: 2 | Time step: 81 | Completed in : 0 min 7.33e-07 sec
WARNING: Negative moles in solution 0 for C, -1.917391e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.404704e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.889441e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.786339e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.485168e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.912982e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.408669e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -5.958766e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.694334e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.506400e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.907689e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.411608e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.028729e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.591073e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.507099e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.901588e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.413565e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.099419e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.478333e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.493873e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.537755e-06. Recovering...
WARNING: Negative moles in solution 0 for C, -1.894745e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.414583e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.170657e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.357656e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.465849e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -3.102858e-05. Recovering...
Reactions | Stress period: 2 | Time step: 81 | Completed in : 0 min 6.32e-04 sec
Transport | Stress period: 2 | Time step: 82 | Completed in : 0 min 7.50e-07 sec
Reactions | Stress period: 2 | Time step: 82 | Completed in : 0 min 6.48e-04 sec
Transport | Stress period: 2 | Time step: 83 | Completed in : 0 min 8.50e-07 sec
Reactions | Stress period: 2 | Time step: 83 | Completed in : 0 min 6.60e-04 sec
Transport | Stress period: 2 | Time step: 84 | Completed in : 0 min 8.33e-07 sec
Reactions | Stress period: 2 | Time step: 84 | Completed in : 0 min 6.37e-04 sec
Transport | Stress period: 2 | Time step: 85 | Completed in : 0 min 9.33e-07 sec
Reactions | Stress period: 2 | Time step: 85 | Completed in : 0 min 6.30e-04 sec
Transport | Stress period: 2 | Time step: 86 | Completed in : 0 min 8.00e-07 sec
WARNING: Negative moles in solution 0 for C, -1.887223e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.414709e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.242193e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.230997e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.421899e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -5.969475e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.879061e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.413923e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.313462e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -2.100569e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.361514e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -8.725795e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.870324e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.412324e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.384676e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.967483e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.283840e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.134055e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.861072e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.409968e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.455436e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.833901e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.188325e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.377782e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.851356e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.406888e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.525114e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.701671e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -2.075008e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.599823e-04. Recovering...
Reactions | Stress period: 2 | Time step: 86 | Completed in : 0 min 6.47e-04 sec
Transport | Stress period: 2 | Time step: 87 | Completed in : 0 min 8.00e-07 sec
Reactions | Stress period: 2 | Time step: 87 | Completed in : 0 min 6.34e-04 sec
Transport | Stress period: 2 | Time step: 88 | Completed in : 0 min 8.83e-07 sec
Reactions | Stress period: 2 | Time step: 88 | Completed in : 0 min 6.37e-04 sec
Transport | Stress period: 2 | Time step: 89 | Completed in : 0 min 8.50e-07 sec
Reactions | Stress period: 2 | Time step: 89 | Completed in : 0 min 6.49e-04 sec
Transport | Stress period: 2 | Time step: 90 | Completed in : 0 min 7.33e-07 sec
Reactions | Stress period: 2 | Time step: 90 | Completed in : 0 min 6.53e-04 sec
Transport | Stress period: 2 | Time step: 91 | Completed in : 0 min 8.33e-07 sec
WARNING: Negative moles in solution 0 for C, -1.841223e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.403126e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.593512e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.572555e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.944132e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.795794e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.830723e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.398741e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.660185e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.448025e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.796217e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.960986e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.819900e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.393779e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.724548e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.329529e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.632153e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -2.090524e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.808793e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.388281e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.786651e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.218284e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -1.453076e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -2.153088e-04. Recovering...
WARNING: Negative moles in solution 0 for C, -1.797439e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.382288e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.845962e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.115014e-04. Recovering...
WARNING: Negative moles in solution 4 for C, -9.767394e-05. Recovering...
WARNING: Negative moles in solution 5 for C, -2.109213e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -2.544422e-06. Recovering...
Reactions | Stress period: 2 | Time step: 91 | Completed in : 0 min 6.80e-04 sec
Transport | Stress period: 2 | Time step: 92 | Completed in : 0 min 7.67e-07 sec
Reactions | Stress period: 2 | Time step: 92 | Completed in : 0 min 6.75e-04 sec
Transport | Stress period: 2 | Time step: 93 | Completed in : 0 min 7.67e-07 sec
Reactions | Stress period: 2 | Time step: 93 | Completed in : 0 min 6.74e-04 sec
Transport | Stress period: 2 | Time step: 94 | Completed in : 0 min 8.67e-07 sec
Reactions | Stress period: 2 | Time step: 94 | Completed in : 0 min 6.56e-04 sec
Transport | Stress period: 2 | Time step: 95 | Completed in : 0 min 7.33e-07 sec
Reactions | Stress period: 2 | Time step: 95 | Completed in : 0 min 6.56e-04 sec
Transport | Stress period: 2 | Time step: 96 | Completed in : 0 min 7.50e-07 sec
WARNING: Negative moles in solution 0 for C, -1.785876e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.375845e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.902336e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -8.318861e-05. Recovering...
WARNING: Negative moles in solution 4 for C, -4.155214e-05. Recovering...
WARNING: Negative moles in solution 5 for C, -2.049568e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -2.694925e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.774138e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.368992e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -6.955539e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -5.704391e-05. Recovering...
WARNING: Negative moles in solution 5 for C, -1.973241e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -5.028380e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.762247e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.361768e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -7.005413e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -3.385372e-05. Recovering...
WARNING: Negative moles in solution 5 for C, -1.879481e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -7.231573e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.750241e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.354209e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -7.051847e-04. Recovering...
WARNING: Negative moles in solution 3 for C, -1.363668e-05. Recovering...
WARNING: Negative moles in solution 5 for C, -1.767783e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -9.271123e-05. Recovering...
WARNING: Negative moles in solution 0 for C, -1.738141e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.346341e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -7.094925e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.591886e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -1.111777e-04. Recovering...
Reactions | Stress period: 2 | Time step: 96 | Completed in : 0 min 6.80e-04 sec
Transport | Stress period: 2 | Time step: 97 | Completed in : 0 min 8.50e-07 sec
Reactions | Stress period: 2 | Time step: 97 | Completed in : 0 min 6.73e-04 sec
Transport | Stress period: 2 | Time step: 98 | Completed in : 0 min 7.50e-07 sec
Reactions | Stress period: 2 | Time step: 98 | Completed in : 0 min 6.47e-04 sec
Transport | Stress period: 2 | Time step: 99 | Completed in : 0 min 7.50e-07 sec
Reactions | Stress period: 2 | Time step: 99 | Completed in : 0 min 6.85e-04 sec
Transport | Stress period: 2 | Time step: 100 | Completed in : 0 min 7.50e-07 sec
Reactions | Stress period: 2 | Time step: 100 | Completed in : 0 min 7.12e-04 sec
MODFLOW 6 converged successfully without any fails
MODEL RUN FINISHED BUT CHECK THE RESULTS
Solution finished at 2026-07-20 15:57:14. Running time: 0.085165 mins
WARNING: Negative moles in solution 0 for C, -1.725972e-03. Recovering...
WARNING: Negative moles in solution 1 for C, -1.338204e-03. Recovering...
WARNING: Negative moles in solution 2 for C, -7.134284e-04. Recovering...
WARNING: Negative moles in solution 5 for C, -1.271992e-04. Recovering...
WARNING: Negative moles in solution 6 for C, -1.273273e-04. Recovering...
True

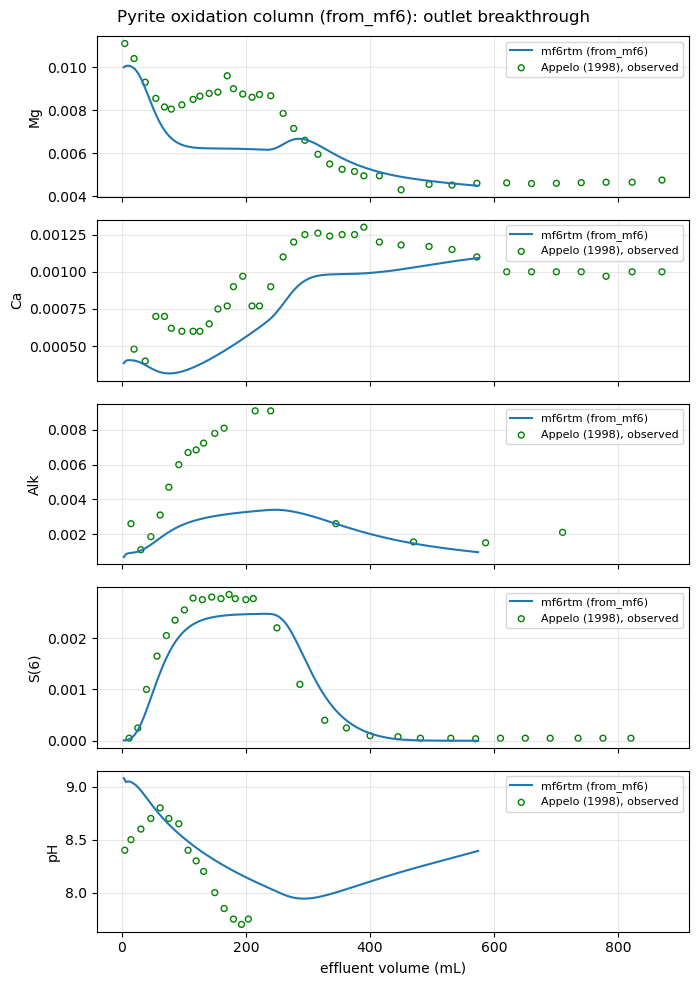

6. Results: effluent breakthrough curves¶
Outlet-cell concentrations versus cumulative effluent volume, compared with the measured effluent data of Appelo et al. (1998). This is the same result as the classic tutorial, reached through the transport-first workflow.
sout = pd.read_csv(os.path.join(model.wd, "sout.csv"))
qml = q * 1.0e6 # m3/d -> mL/d, so time (d) * qml = effluent volume (mL)
outlet = sout[sout["col"] == sout["col"].max()].copy()
outlet["vol"] = outlet["time_d"] * qml
# Measured effluent data (real experiment, not a model benchmark).
obs = pd.read_csv(os.path.join(DATA, "tut02_obs.txt"), sep="\t", skipinitialspace=True)
obs.replace(-9999, np.nan, inplace=True)
obs.dropna(axis=0, how="all", inplace=True)
obs.columns = ["vol", "Mg", "Ca", "Alk", "Cl", "S(6)", "pH"]
obs.set_index("vol", inplace=True)
obs = obs.iloc[3:, :]
plot_vars = [v for v in ["Mg", "Ca", "Alk", "S(6)", "pH"] if v in outlet.columns]
fig, axs = plt.subplots(len(plot_vars), 1, figsize=(7, 2.0 * len(plot_vars)),
sharex=True)
for ax, var in zip(np.atleast_1d(axs), plot_vars):
ax.plot(outlet["vol"], outlet[var], color="tab:blue", zorder=10, label="mf6rtm (from_mf6)")
if var in obs.columns:
ax.scatter(obs.index, obs[var], s=18, facecolors="none",
edgecolors="green", label="Appelo (1998), observed")
ax.set_ylabel(var)
ax.grid(alpha=0.3)
ax.legend(fontsize=8)
np.atleast_1d(axs)[-1].set_xlabel("effluent volume (mL)")
fig.suptitle("Pyrite oxidation column (from_mf6): outlet breakthrough")
fig.tight_layout()
